I. General Introduction

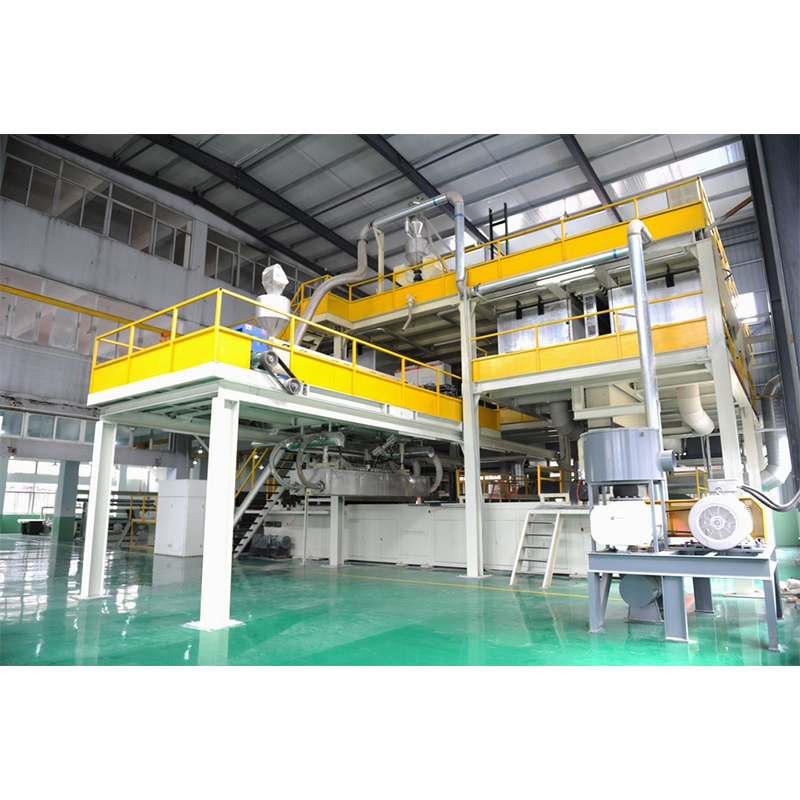

This polypropylene (PP) spunbonded nonwoven fabric production line is more reasonable in design and operation after practices for many years and improvements by our company. After absorbing advanced technology from other similar equipments from home and abroad, this fabric production line has advantages of superior performance, beautiful color, and good quality. It can form a fibre web symmetrically and is complete in types.
High processed products from PP spunbonded nonwoven fabric is widely used in garments, shoes, hats, bedding articles, inner lining, sofa, decorative materials, medical and hygienic products, civil works, water-proof materials, travel products, automotive products, agricultural protection, etc.
II. Flow Chart of Production Line
PP granules/powder－－－－-feeding & mixing－－－－-melting & extruding－－－－-filtering－－－－-spinning－－－－-air cooling－－－－-stretching－－－－-web forming－－－－-hot rolling into fabric－－－－-winding－－－－-slitting－－－－－－final product.
|
1. Raw Material |
10. Air Conditioner |
19. Web Forming Machine |
|
2. Feed Inlet |
11. Refrigerating Unit |
20. Air Compressor |
|
3. Main Extruder |
12. Stretching Unit |
21. Suction Blower |
|
4. Filter |
13. Air Storage Tank |
22. Web Forming Belt |
|
5. Metering Pump |
14. Roller |
23. Hot Rolling Mill |
|
6. Spinning Box |
15. Filter and Metering Pump |
24. Cooling Unit |
|
7. Monomer Suction |
16. Melt-blown Device |
25. Winding Machine |
|
8. Cooling Box |
17. Air Heater |
|
|
9. Cooling Air Blower |
18. Roots Blower |
|
IV. Raw Material Requirements

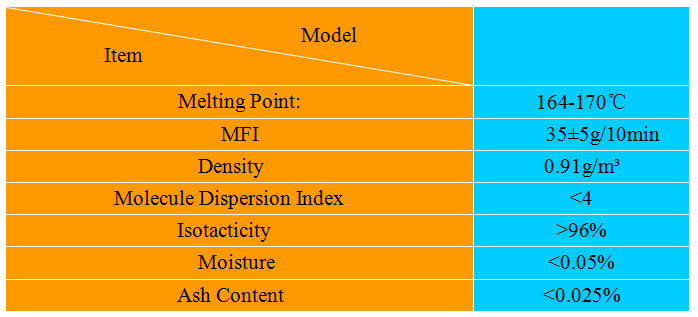

1. The main raw material for spunbonded nonwoven fabric line is Polypropylene granules or powder. Please check the technical parameters as below:
Common Specifications:
